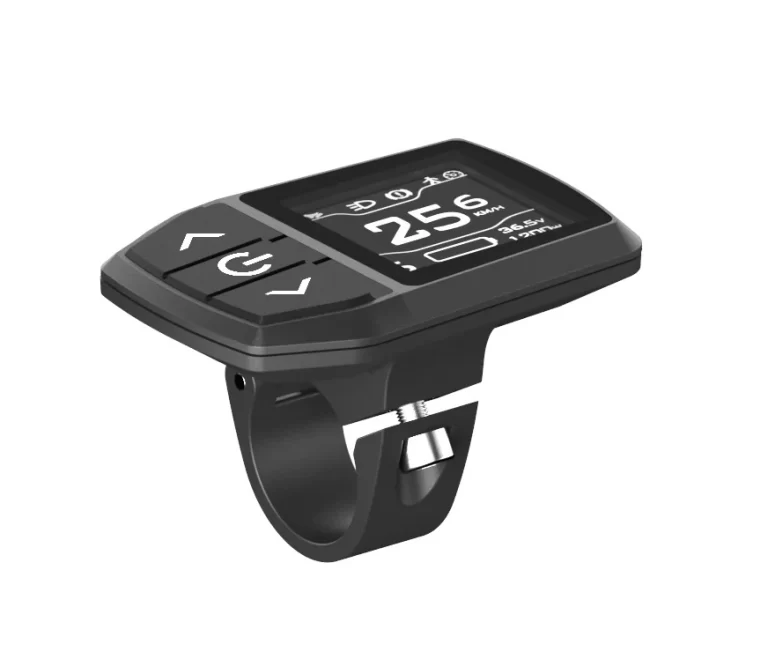

M15 Display

product

M15 Display

Key Specifications of the M15 Ebike Control Panel!

Display screen Material: 1.54″ TFT

Button: Silicon (Red/Blue Backlight)

Power: 15-48VDC/150mA

Communication: UART, RS232, CAN

Housing Material: ABS

Waterproof Level: IP65

Enhanced Riding Experience

  Vibrant TFT Colorful Screen: Enjoy a visually appealing display that enhances user interaction and readability during rides.



Elegant Silicone Rubber Buttons: Transparent buttons with LED back-lighting for effortless navigation, adding sophistication to the control interface.

Intuitive GUI Interface: Seamless interaction allowing easy access to functions and settings, customizing the ride experience for users.

Informed Decision and Compatibility

Digital Communication Interface: Facilitating efficient data exchange between users and the ebike, ensuring seamless operation.

Customization Options: Choose from three font color solutions and three colorful skins, personalizing the control panel’s appearance to suit individual preferences.

Smart Light Sensor Technology: Automatically adjusts back-lighting for optimal visibility in various lighting conditions, intelligently conserving battery power by powering on/off based on ambient light intensity.

Contact Us to Personalize Your Ride and Enjoy Control and Compatibility!

ADDITIONAL INFORMATION

Power 24/36/48VDC /50 ma
Model M15
Screen 1.54″ Monochrome
Button Transparent silicon rubber with LED Backlight
Fix Position Left or right of handlebar
Communication UART/TS232
Housing Material ABS
Ingress Protection IP54
Customaization Available
